Geothermal system
type of geothermal power technology(for heating and cooling) using constant temperature of groudwater by heat pump.

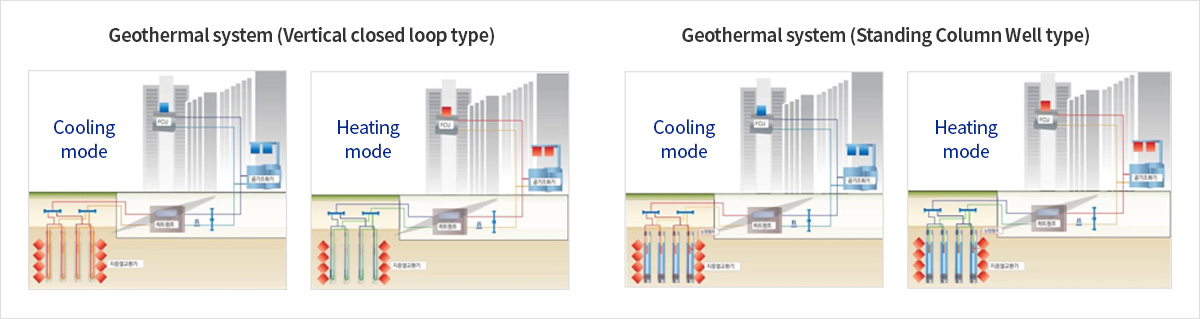

Geothermal system features
| Vertical closed loop type | StandingColumnWell type |
|---|---|
| - Installation cases | - Small footprint, short construction period |
| - Simple System | - High heat pump efficiency due to direct use of groundwater |
| - Nothing is installed on the ground | - The downtown area is appropriate. |
| - be suitable for cases with a large area | - Systems that resolve existing issues |
| - Reduce system efficiency. | - EGENEngineering's patented technology enables stable operation |
| - MAINTENANCE AVAILABLE |
Comparative data for each type of underground heat exchanger (Cooling capacity: based on 300 USRt)
| Sortation | Vertical closed loop type | StandingColumnWell type | SEN StandingColumnWell type(SEN SCW) |
|---|---|---|---|
| overview |  |
 |
 |
| Hole collapse | Degradation due to hole collapse | Use perforated pipe protector to prevent rock collapse and Stable circulation of groundwater | |
| Maintenance | Maintenance required for underwater pumps Supply pipes and recovery pipes of pvc material | Periodic maintenance through flushing operations No deviations by changing the supply pipe and recovery pipe from PVC to HDPE | |
| Efficiency | standard | 105% ~ 110% | |
| features | Improvement of system COP by installing an air & dust separator instead of a heat exchanger to remove foreign substances from pipes EGEN’s SCW type capacity rises when the same area | ||
| Capacity | 2.5 USRt/hole ( Based on 150m) | 25 USRt/hole | 25 USRt/hole |
| Heatpump COP | Cooling : EWT 30 ℃ Heating : Based on 45℃ |
Cooling : EWT 25℃ , 5.1~5,0 (Based on 7℃) Heating : EWT 10℃ , 3.8~4.4 Based on 50℃ |
Cooling : EWT 25℃ , 5.5~6.3 (Based on 7℃) Heating : EWT 10℃ , 4.6 Based on 50℃ |
| Costs | 759,000,000원 | 670,000,000원 | 590,000,000원 |
| Pump Consumption Power | 45kW (Geothermal circulation pump) | 66.4kW (Geothermal circulation pump and Circulation pump of groundwater) | 37kW (Circulation pump of groundwater) |
| Expenses (KRW/USRt) | 94원 / USRt | 88원 / USRt | 79원 / USRt |
